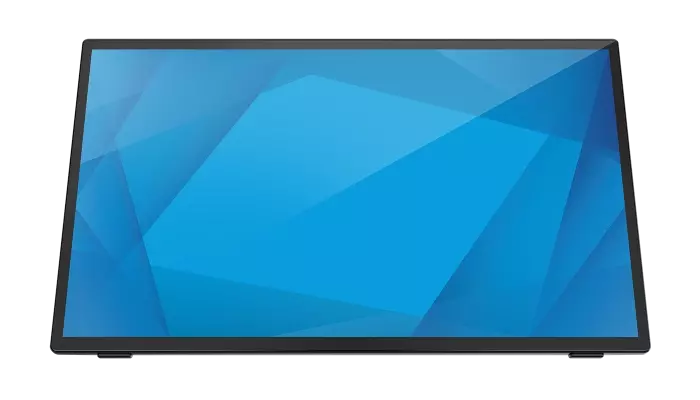

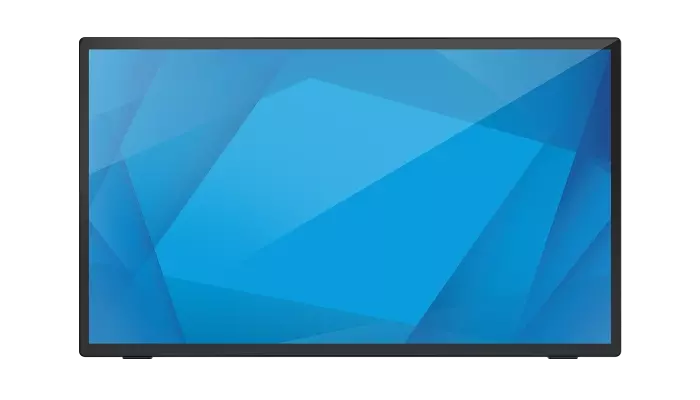

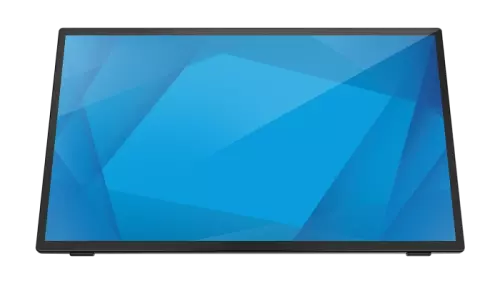

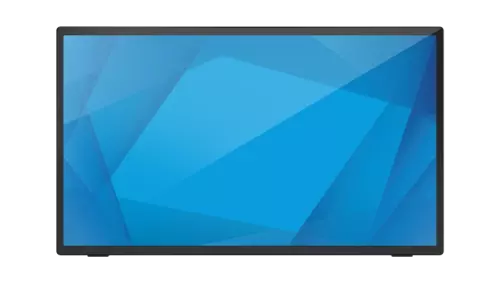

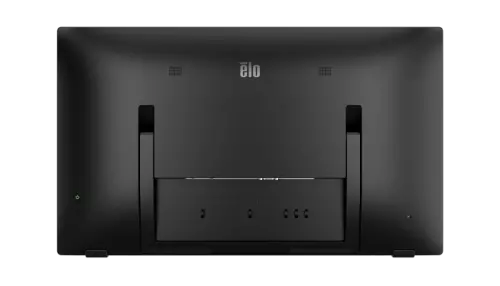

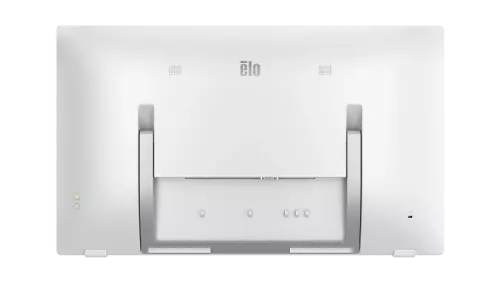

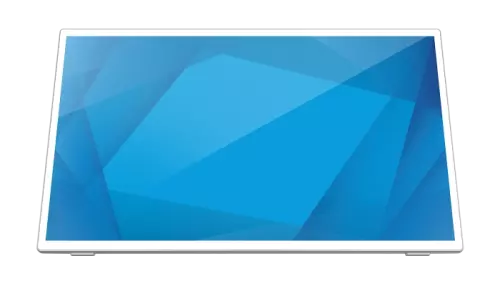

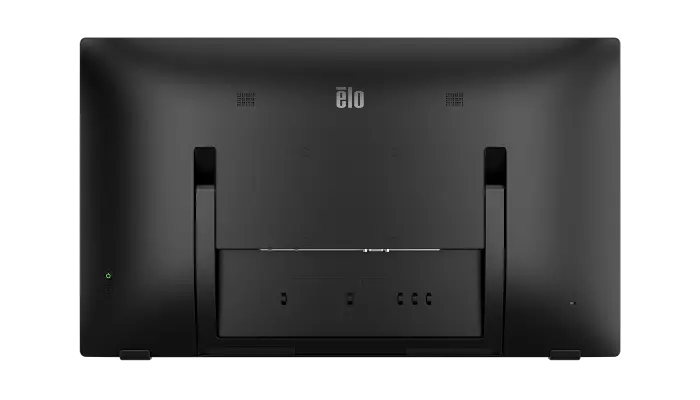

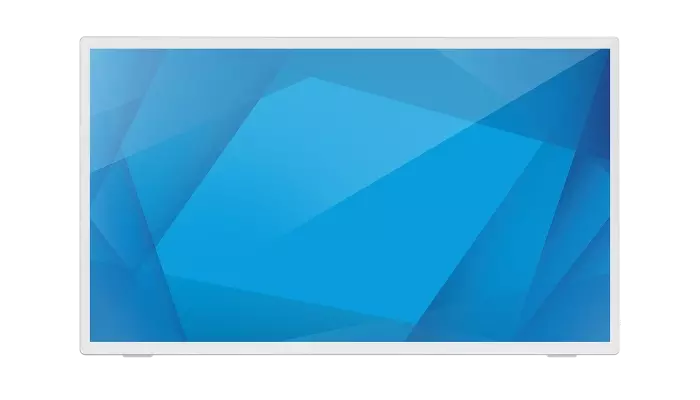

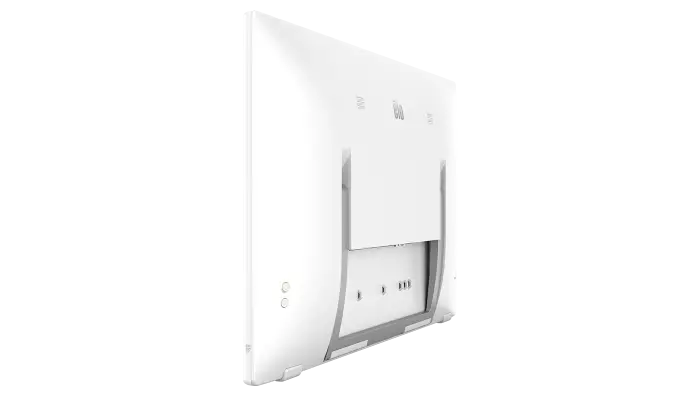

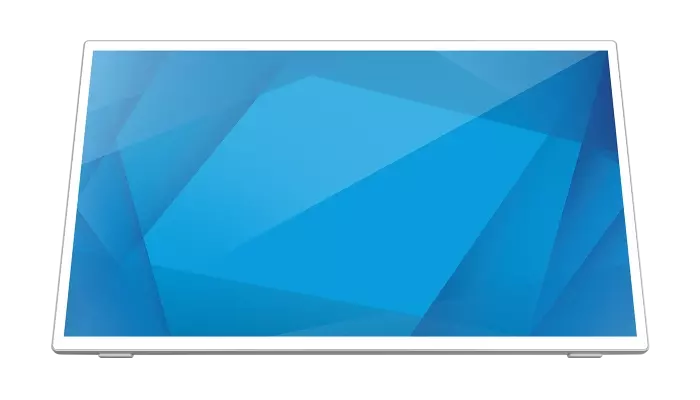

Elo 2770L

27" Touchscreen Monitor

Enclosure Color

Surface Treatment

Meld u aan om prijzen te zien
  • Free Pick-up service
  • Meer dan 30 jaar ervaring
Vergelijk product
  • Omschrijving
  • Features
  • Specificaties
  • Downloads


Product Overview

The Elo 2770L 27-inch Full HD touchscreen monitor delivers a commercial-grade interactive solution with a minimalistic design to fit any space. Backed by a three-year warranty, the compact 2770L offers a durable, energy efficient TouchPro® PCAP touchscreen with clear or anti-glare scratch resistant glass surface options, increased viewing comfort with low blue light and flicker free features, dual built-in speakers, VGA, DP and HDMI video connectors. With a clean design aesthetic available in black and white and flexible mounting options, the 2770L touchscreen is well-suited for POS, interactive digital signage, self-service, document signing and more.



The bezel just got smaller.

The 2770L 27” touchscreen offers up to a 70% reduction in the bezel compared to similar models.

Minimalistic design to fit any space.

From 20 degrees to 70 degrees, angle the display where you want it.

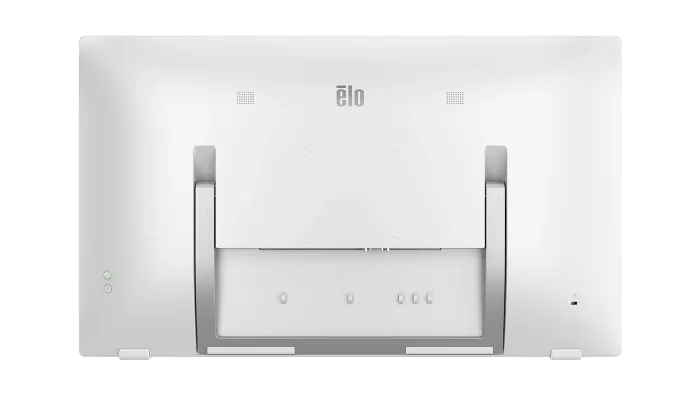

Place it on a desktop, mount it on a wall or configure the 2770L to fit your space with VESA-compatibility.

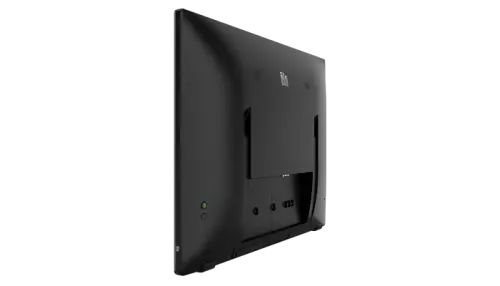

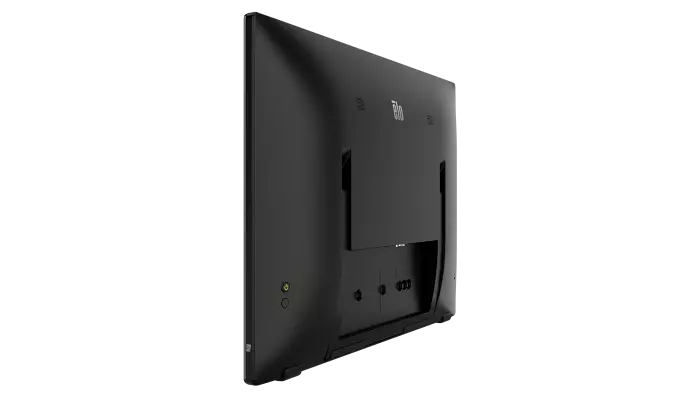

Built-in speakers and integrated IO.

Durable, energy efficient touchscreen.

  • Scratch-resistant glass surface.
  • IK07 impact resistant.
  • ES8.0 certified for greater energy efficiency.


Increase viewing comfort with low blue light and flicker free features.

Navigate the OSD directly on the touchscreen.

We have made it easier to manage your On-Screen Display (OSD) controls – Now you can use the touchscreen or the controls you are used to on the rear side of the monitor.


  • Active Area (mm) 597.888 mm x 336.312 mm
  • Aspect Ratio 16:9
  • Brightness (typical) LCD Panel: 300 nits, TouchPro PCAP: 270 nits
  • Contrast Ratio 1000:1
  • Diagonal Size 27"

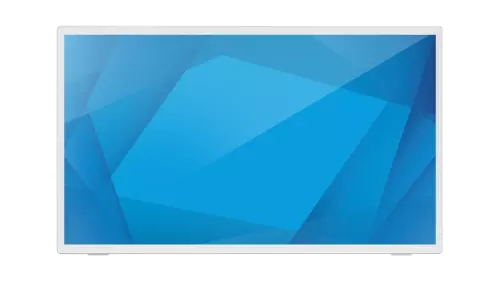

  • Enclosure Color Black, White
  • Horizontal-viewing-angle ±89° or 178° total
  • Humidity Operating: 20% to 80%; Storage: 10% to 95% (38.7? max wet bulb temperature)
  • I/O Ports AC Input (IEC60320 C6), Audio in/out, VGA, HDMI, DisplayPort, USB 2.0 Type B, 2x USB 2.0 Type A
  • Input Video Format VGA (Female DB-15 connector), HDMI (receptacle type A), DisplayPort
  • Monitor Dimensions (without Stand) 626.2 mm x 372.8 mm x 43.8 mm
  • MTBF 50,000 hours demonstrated
  • Number-of-colors 16.7 million
  • Operating Temperature 0°C to 40°C
  • Other Supported Resolutions 640 x 480 60Hz 640 x 400 70Hz 720 x 400 70Hz 800 x 500 60Hz 800 x 600 56, 60Hz 1024 x 768 60Hz 1280 x 720 @ 58Hz, 60Hz 1280 x 800 60Hz 1280 x 1024 60Hz 1366 x 768 60Hz, 60Hz RB 1440 x 900 60Hz, 60Hz RB 1680 x 1050 60Hz, 60Hz RB 1920 x 1080 50 60Hz
  • Power connector (Power brick) AC power input connector: (IEC 60320 C6), AC input voltage range: 100-240VAC, 50/60Hz
  • Power Consumption (Typical) Only display and touch function available: ON (Default - 80% Brightness): 16.5 W, ON (Typical - 100% Brightness): 19 W, SLEEP: 0.5 W, OFF: 0.16 W
  • Resolution 1920 x 1080 @ 50, 60Hz
  • Shipping Box Dimensions 703 mm x 136 mm x 489 mm
  • Shipping Weight (With stand) 9.45 kg (no stand)
  • Speakers Two x 2W internal speakers
  • Storage Temperature -20°C to 60°C
  • Surface Treatment Anti-glare, Clear
  • Technology Projected Capacitive
  • Touch Interface USB
  • Vertical-viewing-angle ±89° or 178° total
  • Vesa-mounting VESA 4-hole 100mm mounting interface on rear of unit
  • Viewing Angle Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
  • Warranty 3-year
  • Weight 6.3 kg
