ELO BACKPACK INTEL

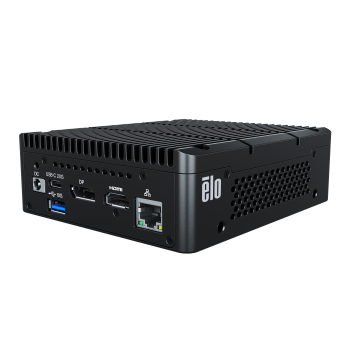

Elo Backpack Intel
E346532

Processor

OS

Sign up to see prices No stock, contact us
  • Over 30 years of experience
  • Free Pick-up service
Compare product
  • Description
  • Specifications
  • Downloads

Description

Elo Backpack® with Intel®

Compact Computer

The Elo Backpack with Intel delivers a compact, enterprise-ready compute solution built for modern deployments. Available with Windows 11 or No-OS, it combines powerful Intel processors, integrated AI acceleration of up to 32 pTOPS, and Wi-Fi 6E to drive consistent performance across demanding environments. Purpose-built to fit in compact spaces, the small form factor mounts easily to any counter, wall, or kiosk using the integrated 100 mm VESA pattern.

Built for scale, the Elo Backpack extends a unified compute platform across digital signage, self-service systems, kitchen displays, automation controls, and more—making it easy to deploy and manage the same commercial architecture across any screen size or installation.

  • Easily secure to any counter, display or in a kiosk in a snap with the built-in 100 mm VESA mount
  • Easily power the device on or off remotely, regardless of placement

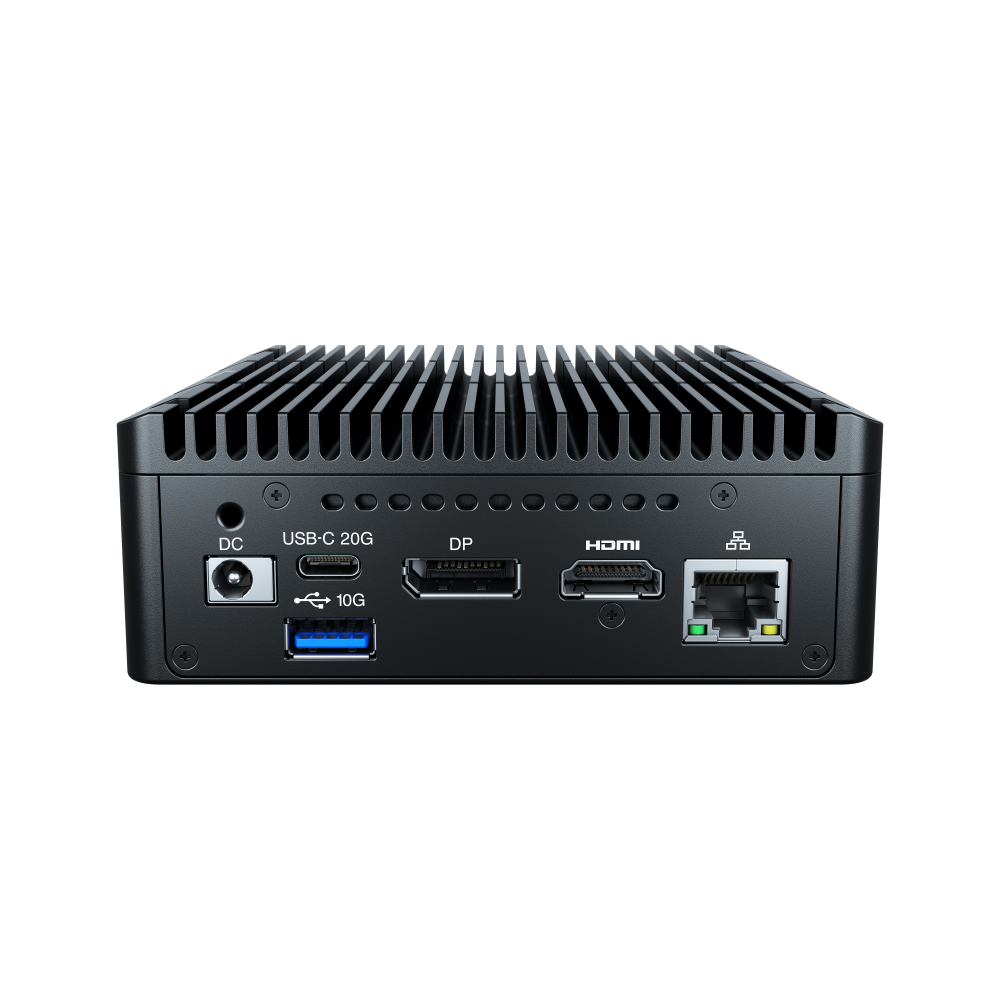

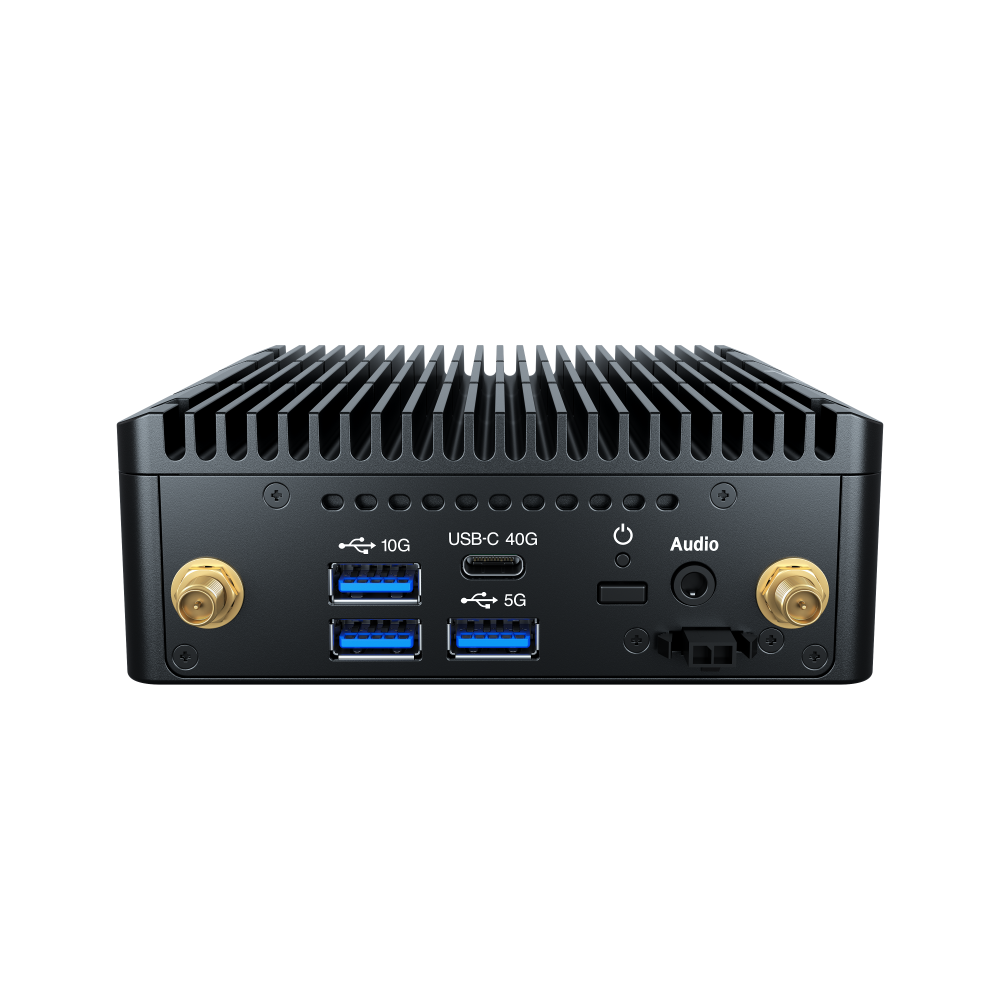

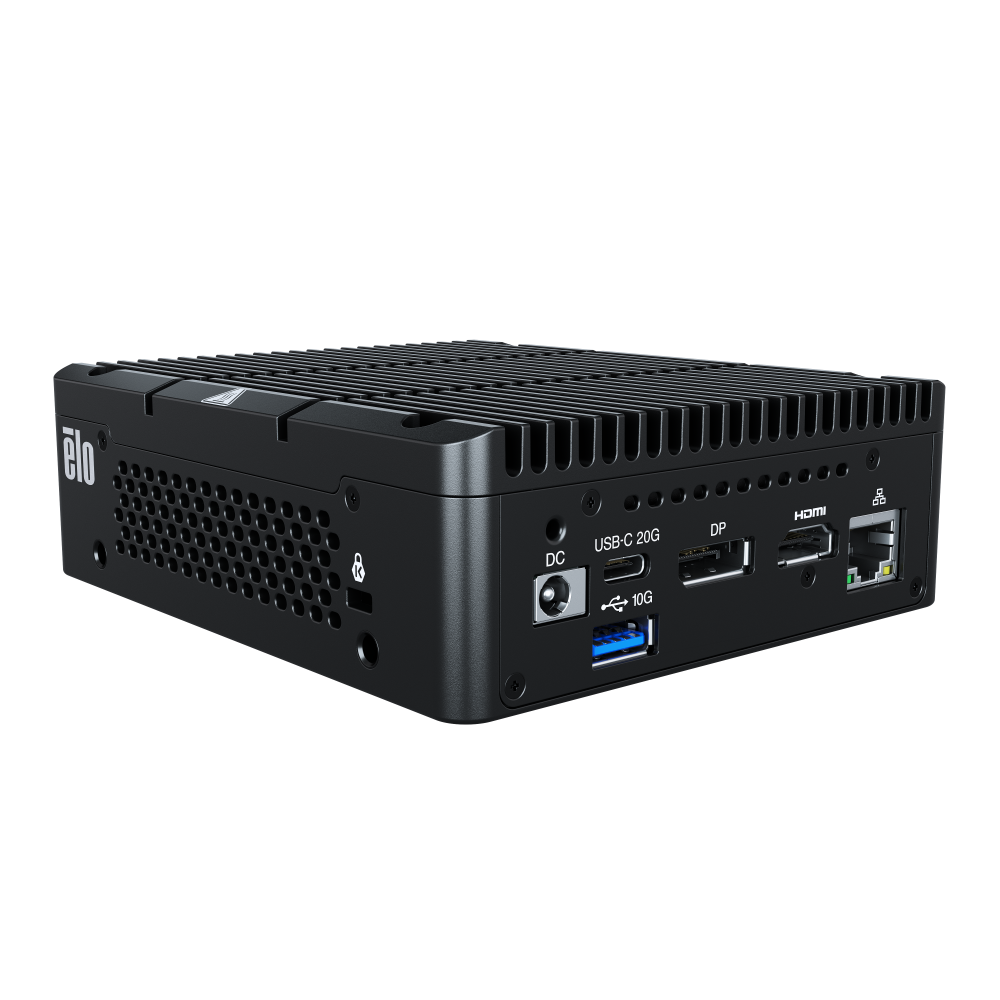

  • Connectivity includes - HDMI, LAN, Display Port, 4x USB, 2x full-function USB-C, Wi-Fi, Bluetooth & Wi-Fi antennas

Specifications

  • Dimensions 139.1 mm x 113.75 mm x 43.66 mm
  • Enclosure Color Black
  • Graphics Graphics N97: Intel UHD Graphics; i3 & i5: Intel Graphics
  • Humidity Operating: 10% to 90% \nStorage: 0% to 95% (38.7°C max wet bulb temperature)
  • I/O Ports N97 & i3: 1x HDMI; 1x Display Port; 1 x LAN RJ45 (Gigabit); 2 x USB 3.2 Gen2 + 1 x USB 3.2 Gen1 + 1 x USB 2.0 ; 2 x Full-function USB-C (Power up to 15W, USB 3.2 Gen2x1, Display Port); 1 x 3.5 mm headset jack; i5: 1x HDMI; 1x Display Port; 1 x LAN RJ45 (Gigabit); 3 x USB 3.2 Gen2 + 1x USB 3.2 Gen1; 1 x Full-function USB-C (Power up to 15W, USB 4 Gen 3x2, Display Port); 1 x Full-function USB-C (Pow
  • Memory (RAM) i5: 16GB 5600MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 64GB maximum¹ on 2 slots)²; ¹ Maximum memory using 2 slots. Expandable up to 64GB maximum, SO-DIMM DDR5-5600.; ² Check brand of the memory included in your unit before purchasing the memory kit.
  • Operating Temperature 0°C to 40°C
  • OS Windows 11
  • Power Consumption (Typical) Without Peripherals: On N97: 21W; On i3: 25.5W; On i5: 26W; Sleep: < 2W; Off BIOS EUP Disable: < 1 W ; Off BIOS EUP Enabled: < 0.5W
  • Power Supply External 19VDC universal-type power supply brick; AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz; Maximum output power: 90W
  • Processor i5: Intel Core Ultra 5 Processor 135U (12 M Smart Cache, up to 4.4 GHz by Intel Turbo Boost Technology 3.0) Intel® vPro Support
  • Shipping Box Dimensions Individual System: 379 mm x 207 mm x 82 mm; 6 systems/carton: 441 mm x 270 mm x 413 mm
  • Shipping Weight (With stand) Individual System: 2.27 kg 6 systems/carton: 14.55 kg
  • Storage i5: 256GB M.2 PCIe (NVMe) SSD 160 TBW; GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.
  • Storage Temperature -20°C to 60°C
  • vesa-mounting built-in 100 mm VESA mount
  • Warranty 3 years
  • Weight 0.97 kg

Downloads
