Elo 6554L

64.5" Interactive Digital Signage
ELO6554L

Technology

Surface Treatment

Sign up to see prices
  • Over 30 years of experience
  • Free Pick-up service
Compare product
  • Description
  • Features
  • Specifications
  • Downloads

Description

6554L 65" Interactive Display

Elevate your applications with Elo’s 6554L 65?inch touch screen monitor that brings interactivity to any setting. With support for up to 40 simultaneous touches, lightning-fast responsiveness, and anti-friction glass, Elo's 6554L prioritizes the user experience. And by combining the touch display with the Elo Backpack or a Brightsign player, you can effortlessly convert this display into a versatile, life-sized 65?inch tablet.

Product Overview

Elevate your applications with Elo’s 6554L 65-inch touch screen monitor that brings interactivity to any setting. Whether you’re enhancing your retail environment with endless aisle, engaging customers with easy to use self-service kiosks, guiding visitors with interactive wayfinding or helping doctors and patients interact in the hospital, the 6554L digital signage display offers a sleek, minimalistic design engineered to withstand the demands of continuous commercial use. With support for up to 40 simultaneous touches, lightning-fast responsiveness, and anti-friction glass to minimize heat as fingertips drag across the screen, Elo’s 6554L prioritizes the user experience. And by combining it with the Elo Backpack or a Brightsign player, you can effortlessly convert this display into a versatile, life-sized 65-inch tablet.

Features

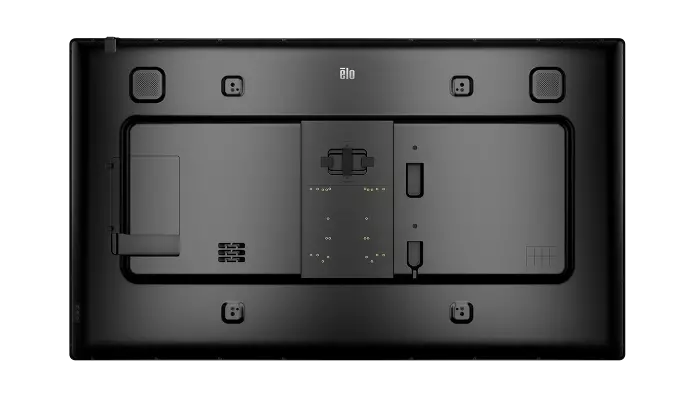

The back of your display never looked so clean.

  • VESA for PC mounting
  • Power brick and power cable mounting
  • External PC power passthrough
  • Contained cable routing

Remote device management enabled with EloView.

With the addition of the integrated IoT control, you can easily manage your device settings with EloView, Crestron or your preferred MDM solution via provided APIs.

Find the perfect digital signage display for your applications, with sizes ranging from 32 inches to 65 inches.

Connect your accessories to the edge. With up to 1.2 Amps, you can easily run four Elo Edge Connect peripherals at one time.

Whether you're enhancing your retail environment with endless aisle, engaging customers with easy to use self-service kiosks, guiding visitors with interactive wayfinding or helping doctors and patients interact in the hospital, the 6554L digital signage display offers a sleek, minimalistic design engineered to withstand the demands of continuous commercial use.

Touch Thru Glass Enabled with PCAP

With touch thru capability, Elo’s TouchPro® PCAP interactive displays can be mounted behind a mirror, in a counter or in a fully encased kiosk for added durability or aesthetics.

Versatile mounting options for commercial interactive displays.

Our commercial-grade interactive displays can be mounted in landscape, portrait and tabletop orientations, providing optimal flexibility for mounting to a wall, in a kiosk or tabletop.

Designed for the demands of commercial environments.

Built for 24/7 use in high-traffic environments with UL-60950 and IK-07 compliance, Elo’s 6554L delivers the reliability and durability businesses need even in the most demanding conditions. With the addition of extended product life cycles and global certifications, you can trust in the long-term performance and suitability of the 6554L for diverse international markets.



Specifications

  • Active Area (mm) 1428.48 mm x 803.5 mm
  • Aspect Ratio 16:9
  • Brightness (typical) LCD Panel: 500 nits// IR: 450 nits, LCD Panel: 500 nits// PCAP: 430 nits
  • Contrast Ratio 1100:1
  • Diagonal Size 64.5
  • Enclosure Color Black
  • Headphone Output Connector 3.5 mm TRS jack
  • Horizontal-viewing-angle ±89° or 178° total
  • Humidity Operating: 20% to 80% - Storage: 10% to 95% (38.7°C max wet bulb temperature)
  • I/O Ports 2x HDMI 2.0 // USB-C (for Touch control and Video input) // USB-A (for Wi-Fi Adapter only) // RJ45 (for IoT LAN port) // RJ45 (for optional OSD remote) // DisplayPort 1.4 // 3.5mm TRS jack (for RS232/MDC) // 3.5mm Audio Headphones out // 4x Elo Edge Connect Micro USB 2.0
  • Input power connector (Monitor) Input connector (power): IEC 60320-C13 // Input signal specifications (power): 100-240VAC 50/60Hz // Output connector (bypass input power to backside device): IEC 60320-C14 // AC outlet short cable (IEC C14 to C5 head) power rating: 100V/2A (200Watt), 220V/2A (440Watt)
  • Input Video Format 2x HDMI on Type A connector (HDCP-capable) // DisplayPort 1.2 connector (HDCP-capable) // USB-C connector (HDCP-capable) - Input Video Horizontal Sync frequency range: FHD: 30 – 135 KHz - Input Video Vertical Sync (frame rate) frequency range: 24 - 64 Hz
  • Monitor Dimensions 1490.6 mm x 865.5 mm x 85.1 mm, 1490.6 mm x 865.5 mm x 95.9 mm
  • MTBF 50,000 hours demonstrated
  • Number-of-colors 10-bit (1.07 billion)
  • Operating Temperature Portrait/Landscape/Tilt (?15°) Mode: 0°C to 40°C - Table top Mode: 0° C to 35° C
  • Other Supported Resolutions 640 x 480 @ 60Hz - 800 x 600 @ 56/60Hz - 1024 x 768 @ 60Hz - 1280 x 720 @ 60Hz - 1280 x 960 @ 60Hz - 1280 x 1024 @ 60Hz - 1920 x 1080 @ 50/60Hz - 2560 x 1440 60 Hz - 2560 x 1600 60 Hz - 3840 x 2160 30/60 Hz
  • Power Consumption (Typical) ON: 152 W SLEEP: 2 W OFF: 0.7 W, ON: 157 W SLEEP: 2 W OFF: 0.7 W, ON: 157 W SLEEP: 2 W OFF: 0.7 W
  • Resolution 3840 x 2160 @ 60 Hz
  • Sealing Sealability: Touchscreen sealed to bezel // Touchscreen sealed to LCD
  • Shipping Box Dimensions 1750 mm x 1150 mm x 280 mm
  • Shipping Weight (With stand) 60 kg, 60.1 kg
  • Speakers 2 x 10 W stereo speakers
  • Storage Temperature -20°C to 60°C
  • Surface Treatment Anti-Glare, Clear
  • Technology Infrared, Infrared;Projected Capacitive, Projected Capacitive
  • Touch Interface USB-C
  • Vertical-viewing-angle ±89° or 178° total
  • Vesa-mounting VESA 600 mm x 600 mm, M8
  • Viewing Angle Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
  • Warranty 3-year with AUR included
  • Weight 50 kg, 50.1 kg
