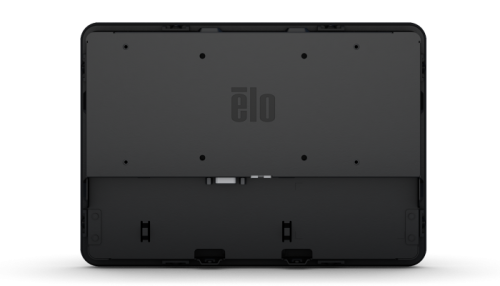

ELO 1093L

10.1" Open Frame Touchscreen
ELO1093L

Technology

Sign up to see prices
  • Over 30 years of experience
  • Free Pick-up service
Compare product
  • Description
  • Features
  • Specifications
  • Downloads

Description

Overview

The Elo 1093L 10-inch open-frame LCD touch display features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch, with proven Elo expertise and reliability built in. The 1093L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the 10-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.

Touch ready.

This seamless, zero-bezel, 10-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.



Features

  • 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
  • Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
  • Easy to integrate with flush mounting brackets on all 4 sides and rear 75 mm VESA mount
  • Display Port, VGA and HDMI video interfaces

Specifications

  • Active Area (mm) 216mm x 135mm
  • Aspect Ratio 16:10
  • Brightness LCD panel: 350 nits
  • Brightness (typical) PCAP: 315 nits
  • Contrast Ratio 800:1
  • Diagonal Size 10.1"
  • Dimensions 255.8mm x 178.5mm x 36.9mm
  • Enclosure Color Black
  • Humidity Operating: 20% to 80% Storage: 10% to 95%
  • Input Video Format Analog VGA on Female DB-15 connector DisplayPort V1.1a - Supports later versions of Display Port video input, HDMI
  • Input Voltage 12VDC +/- 5%
  • MTBF 50,000 hours demonstrated
  • Power Consumption (Typical) Monitor + Adapter at 230V/50Hz ON: 6 W SLEEP: 0.7 W OFF: 0.5W
  • Power Supply External DC - Optional power brick (sold separately)
  • Resolution 1280 x 800 at 60Hz
  • Shipping Box Dimensions 336mm x 262mm x 175mm
  • Technology Projected Capacitive
  • Warranty 3-year
  • Weight 1.2 kg
