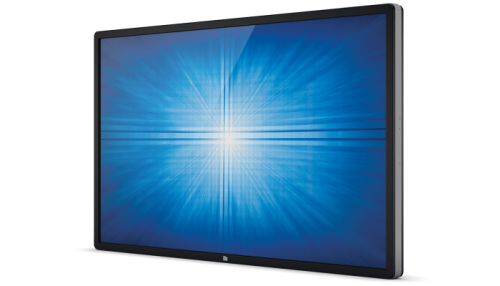

Elo 5501LT

55" Interactive Digital Signage
ELO5501LT

geen configuratie stappen gedefinieerd !

Sign up to see prices
  • Over 30 years of experience
  • Free Pick-up service
Compare product
  • Description
  • Features
  • Specifications
  • Downloads

Description

Overview

Elo’s 5501LT 55-inch interactive digital signage delivers a professional-grade large format touchscreen in a slim, integrated package. Designed from the bottom up for retail, hospitality, enterprise, commercial real estate, education, corporate meeting rooms, lobbies and other commercial applications, the large widescreen 5501LT offers a bright, 500-nit LED panel, with a high-quality, interactive canvas for attracting and engaging consumers. The 5501LT provides a high-performance solution that is easy to deploy and maintain in public environments.

Thinner & lighter.

At 3.4 inches thin, the 5501LT is compliant with the ADA requirement of less than 4-inch protrusion for wall-mounted products when used with an Elo low-profile mount.

Integrated touch.

Elo’s products are factory-built touch systems with durability built in, not snapped on, preventing any “double bezel” appearance or rattling when touched. The Elo 5501LT is housed in a highly durable steel chassis for a long life of reliable performance with a pure-glass touchscreen designed to deliver crystal-clear images. Available with infrared touchscreen technology with a traditional bezel construction, the 5501LT delivers a sensitive multi-touch response with any input device that can be easily integrated into kiosks.

Processing power.

Optional, high-performance computer modules are available to turn the 5501LT into a completely integrated all-in-one computer without the need for any cables or additional mounting hardware. The commercial-grade computer modules, available with Microsoft Windows with Intel Core or Android with Qualcomm Snapdragon (supports EloView®), make the Elo 5501LT IDS display a reliable platform that is interoperable with most content management servers and supports optimal partitioning of locally cached and network streamed content.



Features

  • Professional-grade hardware with strengthened touchscreen glass to withstand the rigors of public use
  • Three-year standard warranty (worldwide) with on-site exchange (NA only) / two-year extended warranty option available (NA and EMEA only)
  • Remote management capability for device hardware with support for future cloud applications
  • Intel OPS compliant with available adapter kit
  • Flexible mounting in portrait, landscape and table-top orientation

Specifications

  • Active Area (mm) 1209mm x 680mm
  • Aspect Ratio 16:9
  • Brightness LCD Panel: 500 nits
  • Brightness (typical) LCD Panel: 500 nits IR: 450
  • Contrast Ratio 4000:1
  • Diagonal Size 55"
  • Dimensions 1267mm x 738mm x 87mm
  • Enclosure Color Black
  • Headphone Output Connector 3.5 mm TRS jack
  • Humidity Operating: 20% to 80% Storage: 10% to 95%
  • I/O Ports Input: AC power, RJ45 Remote Connector, USB type B, Audio Line In Output: Headphone Out
  • Input Video Format Analog VGA, HDMI 1.3, Display port 1.1a.
  • Input Voltage 100-240VAC 50/60Hz
  • MTBF 50,000 hours demonstrated
  • Power Consumption (Typical) Monitor Only (Typical at 120V at 60Hz): ON: 122 W; SLEEP: 13 W; OFF: 1.6 W (Typical at 230V at 50Hz): ON: 120 W; SLEEP: 12 W; OFF: 1.8 W
  • Power Supply Internal AC
  • Resolution Full HD 1920 x 1080
  • Shipping Box Dimensions 1420mm x 235mm x 880mm
  • Speakers Internal 4 x 5W stereo speakers
  • Technology Infrared
  • Warranty 3-year
  • Weight Monitor Only: 44.85 kg, Monitor with Computer Module: 46.82 kg

  Recommended accessories

The following parts and/or accessories are not included with this product, but are required in order to use the product.

If you like, you can add them to your order.

  Potential accessories

These products could be useful in combination with your product (but you can still use your product without them).
